| Feature | Benefit |
|---|---|
| Made By All Polyolefin(Polyethylene and Polypropylene) | High Chemical Resistance |
| High Performance Hollow Fiber Membrane | Excellent particle removal performance,Excellent particle removal performance,Filtration of material of high viscosity |
| Three-dimensional reticulation structure | Filtration of gelatinous material |
| Very Compact Size（Tube Type) | The residual liquid loss is a little. |
Characteristic
POLYFIX series is a hollow fiber membrane filter made up of all-olefin（Polypropylene and polyethylene）.
Filtration accuracy is very fine (20, 50, 100nm= 0.02, 0.05, 0.1um).
Filtration accuracy is very fine (20, 50, 100nm= 0.02, 0.05, 0.1um).
POLYFIX has an excellent capture capability.
The size of POLYFIX Tube series is compact, it suitable for small scale filtration.
The size of POLYFIX Tube series is compact, it suitable for small scale filtration.
Specification
| Pore Size | 20,50,100nm | ||||
| Material | Filter Media | Polypropylene | |||
| Tube | Polyethylene | ||||
| Maximum Operation Pressure | 0.40MPa(25℃） | ||||
| Allowable maximum differential pressure | 0.25MPa(25℃） | ||||
| Operation Temperature | 5～40℃ | ||||
| Connection | 1/4 inch tube | ||||
| 3/8 inch tube | |||||

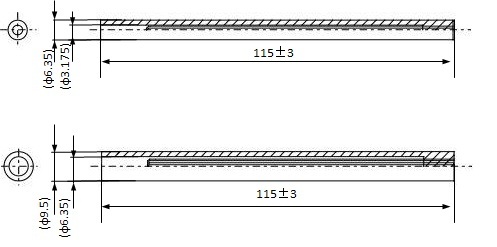

| Size | Diameter × Length | φ1/4×115mm | |||
| φ3/8×115mm | |||||
